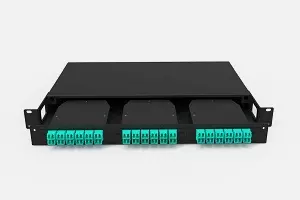

MTP/MPO Patch panel is widely placed in data center,FTTH network,one MTP/MPO Patch panel usually hold three or four 12F/24F MTP/MPO cassette,even more.
1)Low insertion loss
2)High return loss
3)Good repeatability and interchange
4)Excellent environmental adaptability
5)Meet IEC61754 , TIAFOCIS 5/604-5 , bell core GR-143
1)Data center
2)FTTH
3)Premise installations
4)Optical test equipment
5)Storage area network
1.Connector Performance Specifications
| Parameter | Single Mode | Multi mode |
| Polish | PC,APC | PC,APC |
| Connector Type | MTP/MPO,SC,LC,FC,ST | MTP/MPO,SC,LC,FC,ST |
| Insertion Loss@MTP/MPO | Standard≤0.7dB，Elite≤0.35dB | Standard≤0.5dB，Elite≤0.3dB |
| Insertion Loss@Fanout-SC/LC | Standard≤0.3dB，Elite≤ 0.1dB | Standard≤0.2dB，Elite≤0.1dB |
| Return Loss | PC>50dB,APC>60dB | >30dB |
| Durability(500 matings) | ≤0.2dB | ≤ 0.2dB |
| Test wavelengths | 1310/1550nm | 850/1300nm |
Notes:The insertion loss is for MTP/MPO fanout only.Cassette(with MTP/MPO) SM IL≤ 0.7dB,MM IL≤ 0.6dB.
2.Cable Performance Specifications
| Fiber Type | OS2,OM1,OM2,OM3,OM4 |
| Fiber Core | 8,12,24,48,96,144 cores |
| Cable Diamenter | 3.0mm,5.5mm or custom |
| Jacket Color | Yellow,Orange,Aqua,Purple |
| Jacket Material | OFNR,OFNP,PVC,LSZH |
| Tensile Strength | 500N |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Dimension | As the drawing or custom |

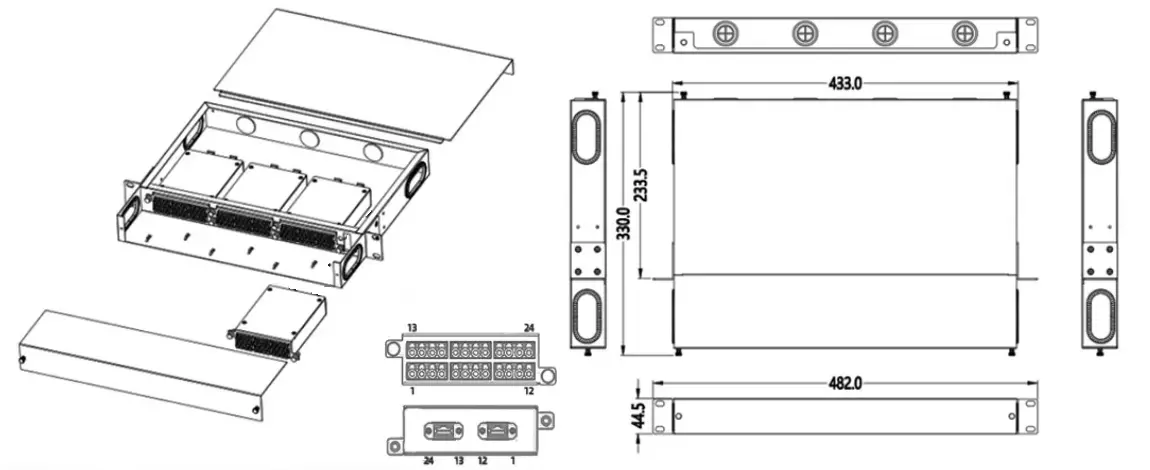

3.Engineering diagram
