PLC Splitter

PLC splitter is a passive device, also known as optical splitter, which do not require external energy, as long as there is input light.PLC is mainly used in FTTX network,in Rack mount,distribution box,junction box and so on.PLC maining package have Mini,ABS Box,Cassette and Rack Mount.

Features

1)Low insertion loss

2)High return loss

3)Good repeatability and interchange

Applications

1)FTTH

2)CATV

3)Optical communication systems

Product parameters

1.1xN PLC Performance Specifications

Parameter1×21×41×81×161×321×64
IL(dB)(P/S)3.8/4.0 7.1/7.310.2/10.513.5/13.716.5/16.920.5/21.0
RL(dB)(P/S)55/5055/5055/5055/5055/5055/50
Uniformity(dB)0.40.60.81.21.52.0
directivity(dB)555555555555
PDL(dB)0.20.20.20.250.30.35
WDL(dB)0.30.30.30.50.50.5
Temperature Stability
(-40~85 °C)(dB)		0.40.40.40.50.50.5
Mini Dimension (mm)60x7x460x7x460x7x460×12×480×20×6100×40×6
ABS Box Dimension (mm)100x80x10100x80x10100x80x10120x80x18120x80x18140x115x18

Notes:The insertion loss is without connectors,with connectors add 0.15dB.

2.2xN PLC Performance Specifications

Parameter2×22×42×82×162×322×64
IL(dB)(P/S)4.07.611.014.417.521.0
RL(dB)(P/S)55/5055/5055/5055/5055/5055/50
Uniformity(dB)0.61.01.21.51.82.2
directivity(dB)555555555555
PDL(dB)0.20.20.30.30.40.4
WDL(dB)0.30.40.50.50.50.5
Temperature Stability
(-40~85 °C)(dB)		0.40.40.40.50.50.5
Mini Dimension (mm)60×7×460×7×460×7×460×12×480×20×6100×40×6
ABS Box Dimension (mm)100×80×10100×80×10100×80×10120x80x18120x80x18140x115x18

Note:The insertion loss is without connectors,with connectors add 0.15dB.

3.Cable Performance Specifications

Operating Wavelength1260~1650nm
Fiber TypeG652D,G657A1,G657A2,or custom
Cable Diamenter250um bare fiber,0.9mm,2.0mm,3.0mm or custom
Jacket ColorYellow or custom
Jacket MaterialPVC,LSZH
Operating Temperature-40°C to 85°C
Storage Temperature-40°C to 85°C

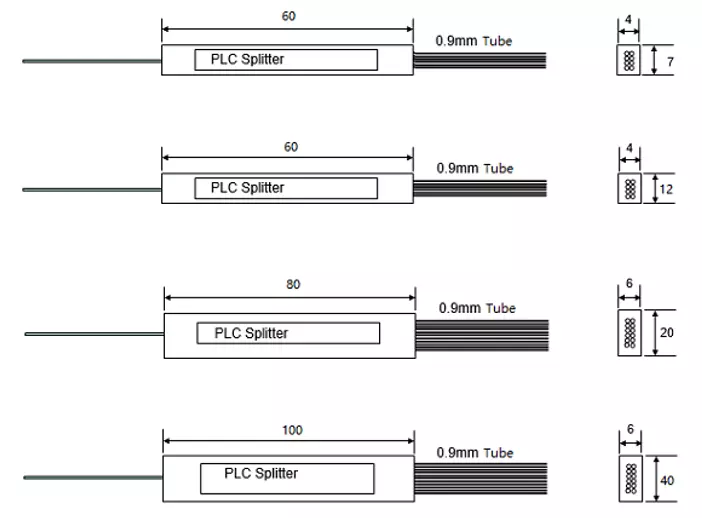

4.Mini PLC Package Drawing

5.ABS Box PLC Package Drawing
