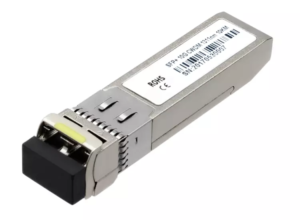

10G CWDM SFP+ series support a variety of transmission distances from 10KM to 100KM. This series of products adopt LC optical port and are compatible with IEEE802.3ba and other standards.It is characterized by low power consumption, small volume and wide temperature range.It is mainly used in SDH/SONET transmission and other environments.
1)Multirate Protocol up to 11.3Gb/s
2)Duplex LC Connector
3)Support Digital Diagnostic Monitoring interface
4)Meet ESD requirements, resist 8KV direct contact voltage
5)Compliant with IEEE 802.3ae 10GBASE
6)Compliant with SONET OC-192 / SDH STM-64
7)18-Wavelength CWDM 1270nm to 1610nm available
8)Low Power Dissipation
9)RoHS-6 Compliant
10)Operation Temperature Range 0~70°C or -40~85°C optional
| Description | Data Rate | Reach | TX | RX | Output Power | Sensitivity |
| 10G CWDM SFP+ 10KM | 10Gbps | 10KM | CWDM DFB | PIN | -5~0dBm | ≦-14dBm |
| 10G CWDM SFP+ 20KM | 10Gbps | 20KM | CWDM DFB | PIN | -3~ 2dBm | ≦-16dBm |
| 10G CWDM SFP+ ER | 10Gbps | 40KM | CWDM 1270~1450nm DFB | PIN | 0~+5dBm | ≦-16dBm |
| 10G CWDM SFP+ ZR | 10Gbps | 80KM | CWDM 1470~1610nm EML | APD | 0~+5dBm | ≦-23dBm |
