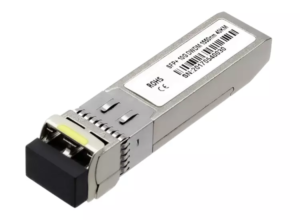

10G DWDM SFP+ series support a variety of transmission distances from 40KM to 100KM. This series of products adopt LC optical port and suitable for 50/100GHz ITU channel spacing with integrated wavelength locker.
1)Support Multi Protocol from 9.9Gb/s to 11.3Gb/s
2)50/100GHz ITU channel spacing with integrated wavelength locker
3)Wide distance Supported from 40Km to 100km
4)Support Digital Diagnostic Monitoring interface
5)Metal Enclosure for Lower EMI
6)Compliant with SFF+MSA and SFF-8472
7)Meet ESD requirements, resist 8KV direct contact voltage
8)DWDM 100GHz ITU Grid C-band wavelength available
9)Single +3.3V Power Supply
10)Low Power Dissipation
11)Operation Temperature Range 0~70°C or -40~85°C optional
| Description | Data Rate | Reach | TX | RX | Output Power | Sensitivity |
| 10G DWDM SFP+ ER | 10Gbps | 40KM | DWDM EML | PIN | -1~+4dBm | ≦-16dBm |
| 10G DWDM SFP+ ZR | 10Gbps | 80KM | DWDM EML | APD | -1~ +5dBm | ≦-23dBm |
| 10G DWDM SFP+ ZR+ | 10Gbps | 100KM | DWDM EML | APD | 0~+5dBm | ≦-25dBm |
