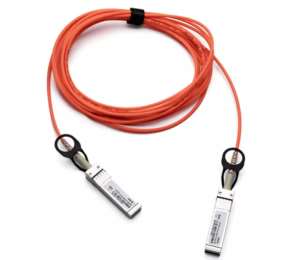

10G SFP+ active fiber cables are direct-attached fiber optic components with SFP+ connectors. They are suitable for short-reach scenarios and provide a cost-effective way to connect within and across adjacent racks. On the OM3 MMF, the length of the SFP+ active fiber optic cable is up to 300 meters.
1)Hot pluggable SFP+packge,compliant with SFP+ MSA ,IEEE 802.3 and OTN standard
2)Support 10Gb/s bidirectional transmission
3)850nm VCSEL Laser,PIN Photo-detector Receiver
4)Electrical interface compliant with SFF-8431
5)Low power consumption less than 0.35W per end
6)Maximum link 300m@OM3 MMF
7)Compliant with EMI、ESD、RoHS-6
8)Operation Temperature Range 0~70°C
Description | Data Rate | Reach | TX | RX | Output Power | Sensitivity |
10G SFP+ AOC | 10Gbps | 0.5~300M | 850nm VCSEL | PIN | / | / |
