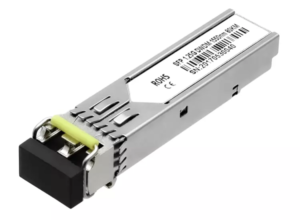

155M~ 2.67G DWDM SFP contain 155Mb, 1.25Gb, 2.5G series, support a variety of transmission distance from 40KM to 160KM. The series products adopt LC optical port and are compatible with ieee 802.3ba.It is characterized by low power consumption, small volume and wide temperature range.It is mainly used in SDH/SONET transmission and other environments
1)Hot-pluggable SFP package
2)Dual LC Connector
3)Wide distance Supported from 40Km to 120km
4)Built-in Digital Diagnostic Monitor functions optional
5)Metal Enclosure for Lower EMI
6)Comply with SFP MSA
7)Comply with SDH/SONET
8)Comply with IEEE Std 802.3
9)DWDM 100GHz ITU Grid C Band Available
10)Single +3.3V Power Supply
11)Low Power Dissipation
12)RoHS-6 Compliant
13)Operation Temperature Range 0~70°C or -40~85°C optional
| Description | Data Rate | Reach | TX | RX | Output Power | Sensitivity |
| 155M DWDM SFP ZR | 155Mbps | 80KM | DWDM DFB | PD | -5~0dBm | ≦-36dBm |
| 1.25G DWDM SFP ZR | 1.25Gbps | 80KM | DWDM DFB | PD | 0~+5dBm | ≦-24dBm |
| 1.25G DWDM SFP ZR+ | 1.25Gbps | 120KM | DWDM DFB | APD | 0~+5dBm | ≦-32dBm |
| 1.25G DWDM SFP ZR++ | 1.25Gbps | 160KM | DWDM DFB | APD | ≥+3dBm | ≦-34dBm |
| 2.5G DWDM SFP ER | 2.5Gbps | 40KM | DWDM DFB | PD | 0~+5dBm | ≦-18dBm |
| 2.5G DWDM SFP ZR | 2.5Gbps | 80KM | DWDM DFB | APD | 0~+5dBm | ≦-28dBm |
| 2.5G DWDM SFP ZR+ | 2.5Gbps | 120KM | DWDM DFB | APD | -1~+4dBm | ≦-31dBm |
