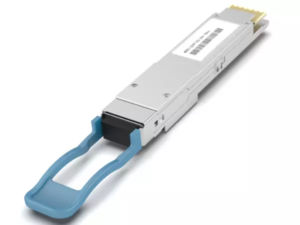

400G QSFP-DD

400G optical module refers to optical module products with a transmission rate of 400Gbps. At present, the mainstream packaging type is QSFP-DD (Quad Small Form-factor Pluggable Double Density), which is a high-speed optical module interface specification, an upgraded version of the QSFP interface, and supports 400G high-speed transmission. Using optical fiber as the signal transmission medium, digital signals are converted into optical signals and transmitted in optical fibers.

Features

1)Supports 425Gb/s bit rate

2)Hot Pluggable QSFP-DD form factor

3)Support Digital Monitoring interface

4)Compliant to QSFP-DD Rev 4.0

5)SFF-8636 Management Interface

6)SFF-8679: General Electrical

7)IEEE 802.3cd: Physical Layer Specifications and Management Parameters

8)All-metal housing for superior EMI performance

9)Meet ESD requirements, resist 8KV direct contact voltage

10)RoHS-10 compliant and lead-free

11)Single +3.3V power supply

12)Operation Temperature Range 0~70°C

Specifications

DescriptionData RateReachTXRXOutput PowerSensitivity
400G QSFP-DD SR8425Gbps100M850nm VCSELPIN-6.5~+4dBm≦-7.9dBm
400G QSFP-DD DR4425Gbps500M1310nm EMLPIN-2.4~+4dBm≦-6.4dBm
400G QSFP-DD FR4425Gbps2KM1310nm EMLPIN-3.3~+3.5dBm≦-7.3dBm
400G QSFP-DD LR4425Gbps10KM1310nm EMLPIN-2.8~+4dBm≦-9.1dBm
400G QSFP-DD ER4425Gbps40KM1310nm EMLAPD0.4~+6.5dBm≦-16.5dBm
400G QSFP-DD ER8425Gbps40KM1310nm EMLAPD-0.6~5.+6dBm≦-16.1dBm
